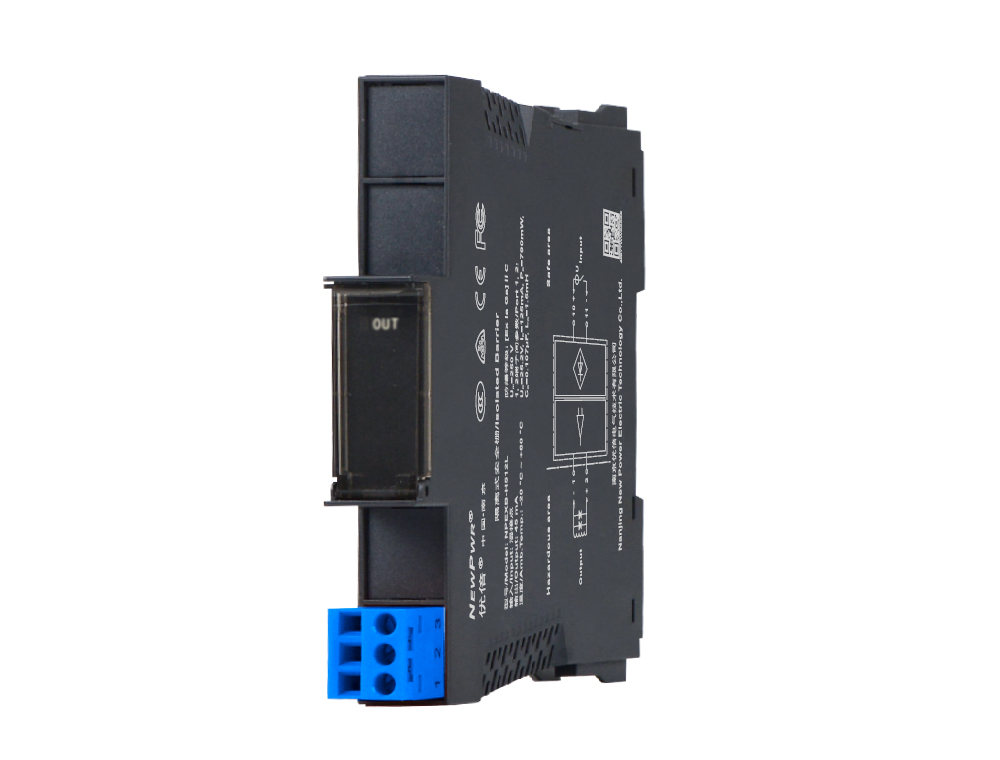

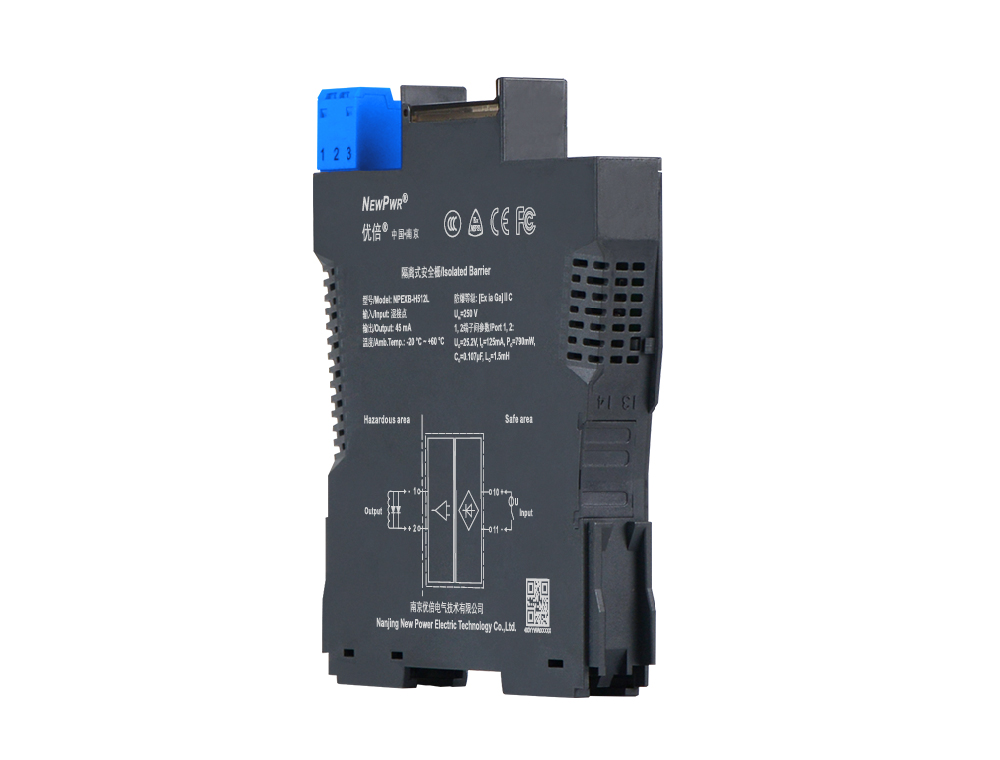

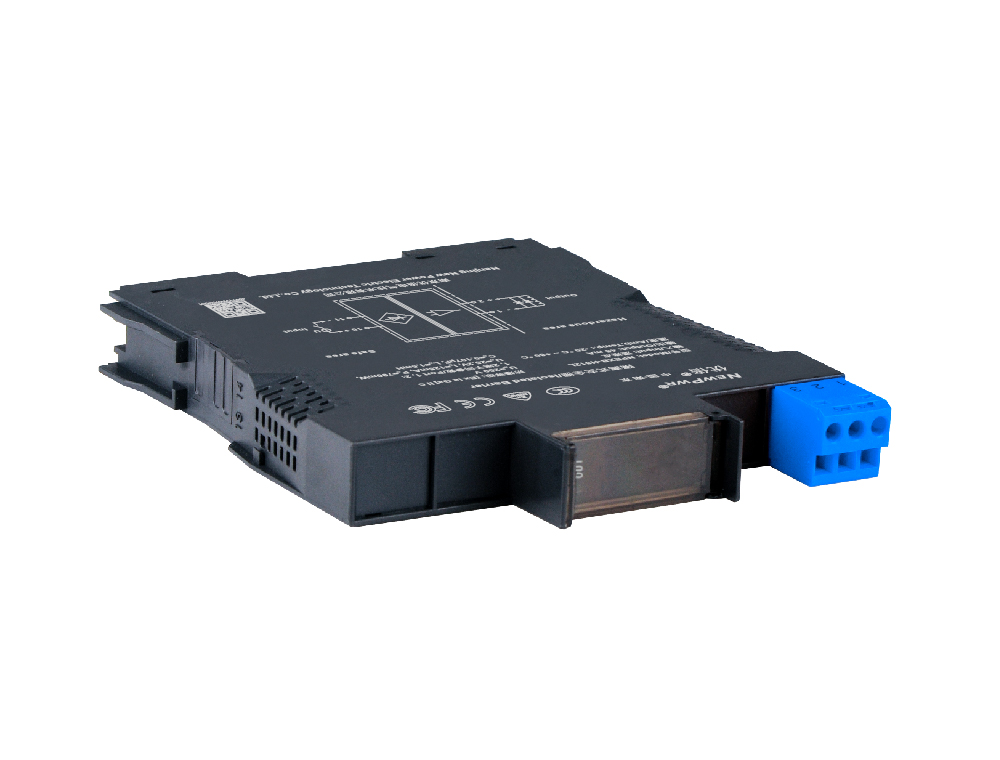

NPEXB-H512L

Digital output isolated barrier. By switch signal controlling, transfers the wet contact signals from a safe area into current signals to a hazardous area, and drives field device like intrinsically safe valves, audible alarms, etc. It has backplane loop powered. The input and output is galvanically isolated from each other.

Input signal

Wet contact

Output signal

45 mA

Channels

1 input/1 output

Power Supply Mode

Backplane power supply

Share

NPEXB-H512L

Product details Technical data Download

contrast

【Core technology】


【Installation and disposal】

安全栅装置.gif 安全栅拆卸.gif

Apparatus installation Apparatus disposal

底板装置.gif 底板拆卸.gif

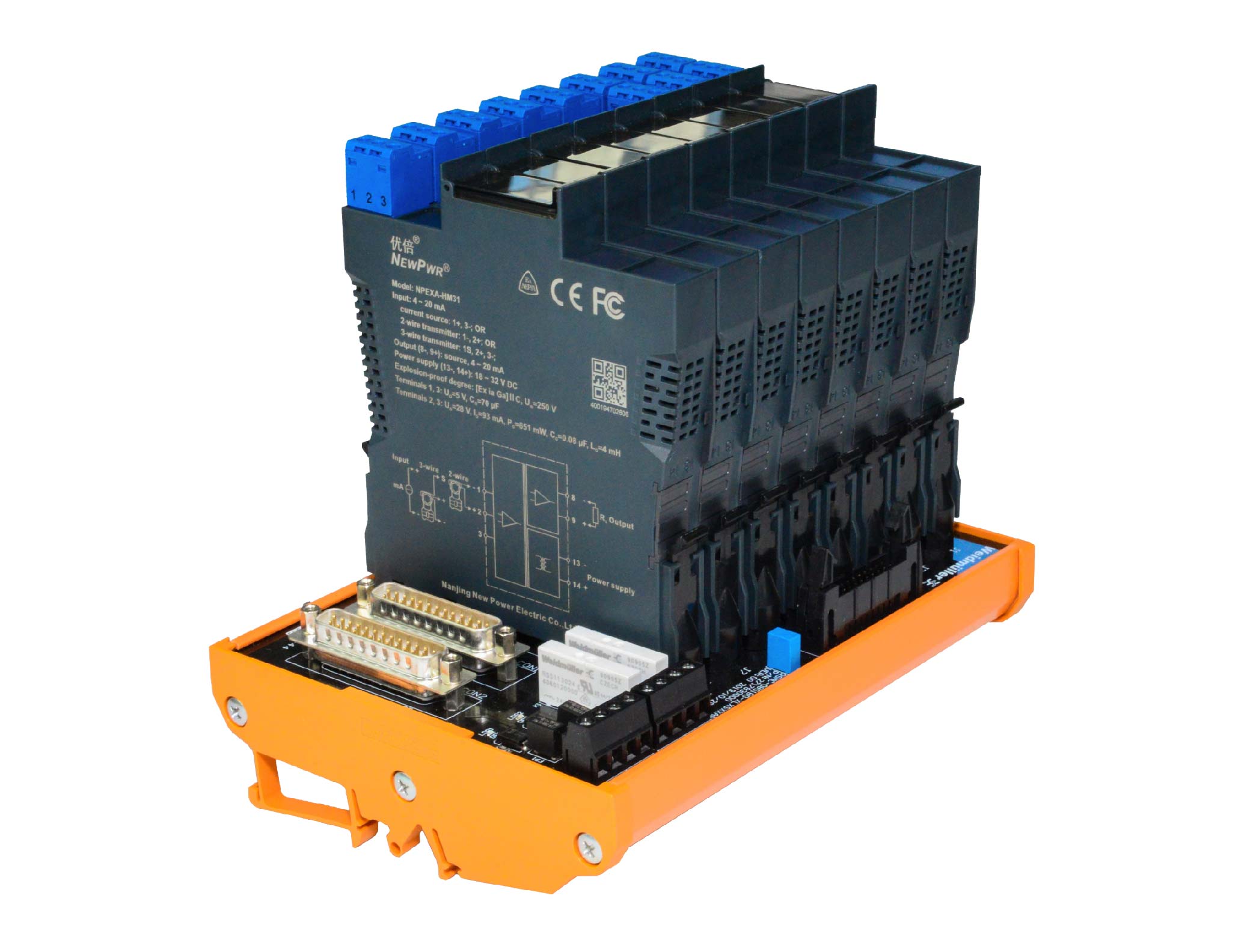

Backplan installation Backplan disposal

【Technical data】 Supply Input Output General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

Supply

Loop Powered

20 ~ 30 V DC

Input

Input signal

wet contact

Output

Output voltage	＞ 12.2 V DC
Output current	≤ 45 mA
Open-circuit voltage	21.5 V DC

General parameters

Response time	＜ 20 ms
Power dissipation	≤ 1.6 W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 2500V AC (intrinsically safe side / non-intrinsically safe side);
Insulation resistance	≥ 100 MΩ (Input /Output)

Operating conditions

Operation temperature	-20 ℃ ~ +60 ℃
Storage temperature	-40 ℃ ~ +80 ℃
Suitable location	Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6

Mechanical specifications

Connection method	Screw connection
Dimension	15.8mm (W) × 121.6mm (H) × 104.8mm (D)
Mounting type	DIN35 mm

Certified data

Product approvals	NEPSI, CE, FCC, CCC
Ex marking	[Ex ia Ga]ⅡC
Um	250 V
Uo	25.2 V (Terminals 1, 2)
Io	125 mA (Terminals 1, 2)
Po	790 mW (Terminals 1, 2)
Co	0.107 μF (Terminals 1, 2)
Lo	1.5 mH (Terminals 1, 2)
