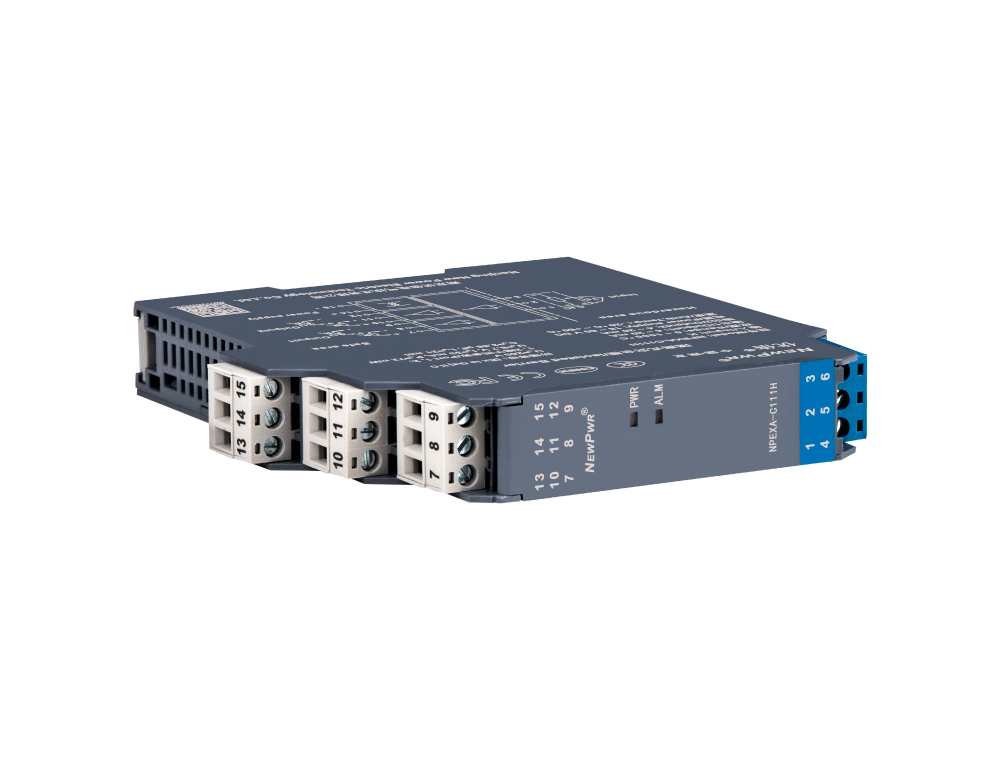

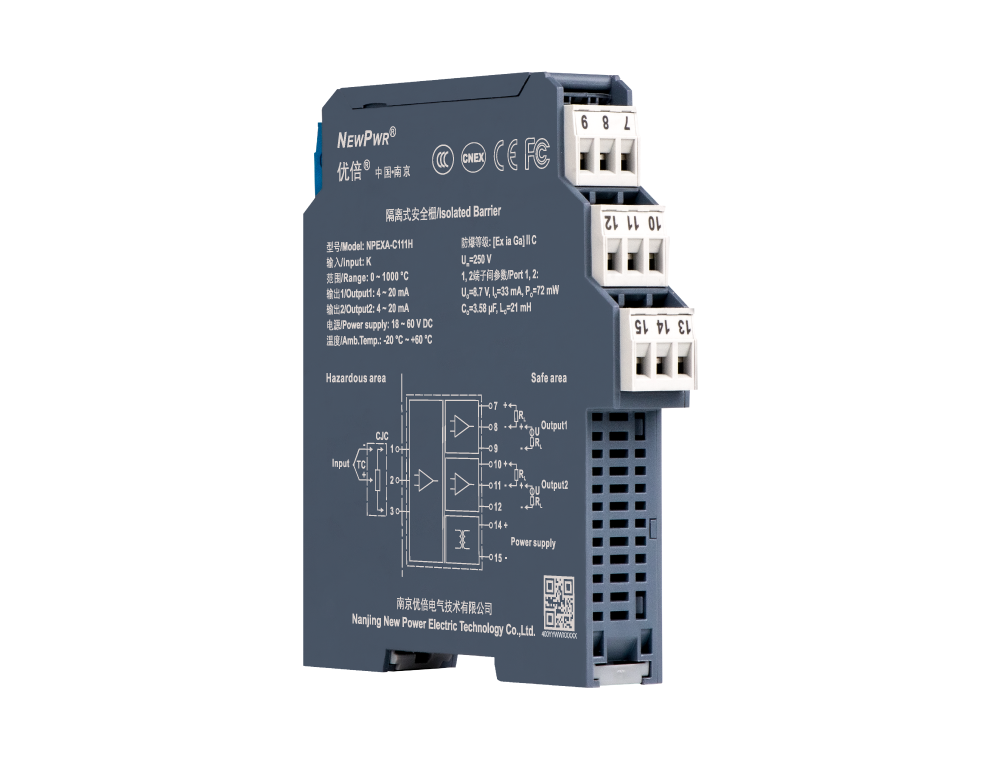

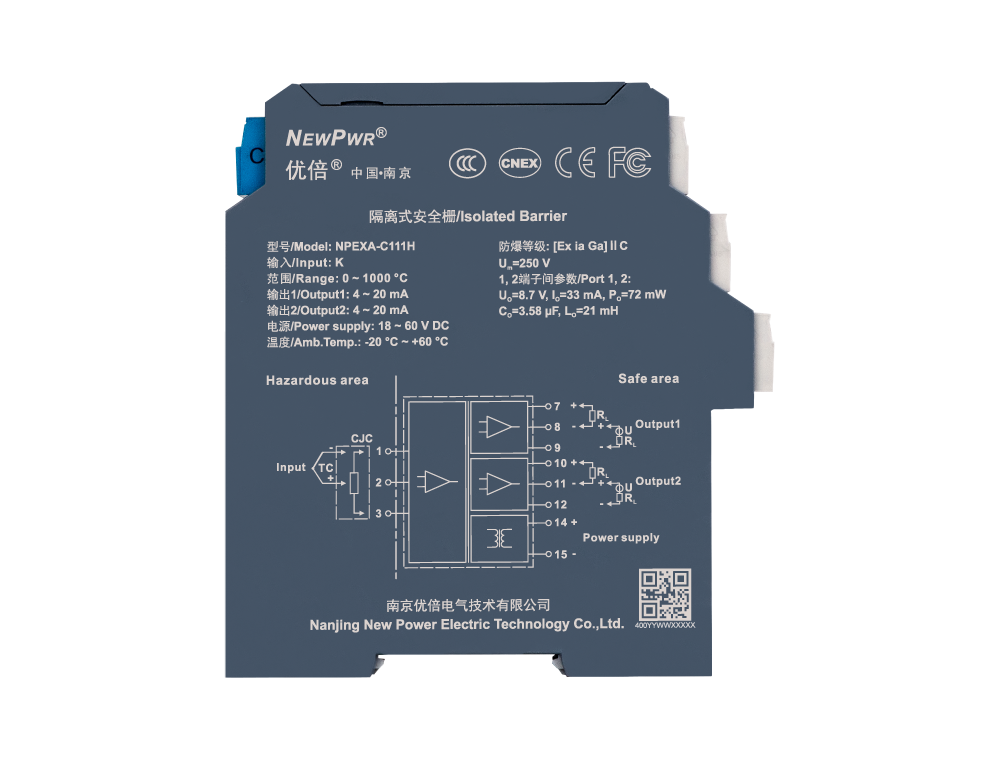

NPEXA-C111H

Temperature input isolated barrier, it converts the thermocouple signals from a hazardous area into 4~20mA signals to a safe area by isolation. It has external cold junction compensation terminals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. The self-test function is also available on this device. Calibrate the apparatus or modify parameters by using a handheld programmer.It has external cold junction compensation terminals. It needs an independent power supply. The input, output,
3118云顶集团(中国区)官方网站 3118云顶集团(中国区)官方网站

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXA-C111H

【Core technology】


【Installation and disposal】






Installation                                               Disposal



【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal TC
Output
Output signal 4 ~ 20 mA
Load resistance RL ≤ 550 Ω
Transfer characterisics
K -200 ℃ ~ +1372 ℃/＜300 ℃，，，±0.3 ℃/≥300 ℃，，，±0.1 %F.S.
E -120 ℃ ~ +1000 ℃/＜300 ℃，，，±0.3 ℃/≥300 ℃，，，±0.1 %F.S.
J -140 ℃ ~ +1200 ℃/＜300 ℃，，，±0.3 ℃/≥300 ℃，，，±0.1 %F.S.
T -270 ℃ ~ +400 ℃/＜300 ℃，，，±0.3 ℃/≥300 ℃，，，±0.1 %F.S.
N -200 ℃ ~ +1300 ℃/＜300 ℃，，，±0.3 ℃/≥300 ℃，，，±0.1 %F.S.
S -50 ℃ ~ +1768 ℃/＜500 ℃，，，±0.5 ℃/≥500 ℃，，，±0.1 %F.S.
R -50 ℃ ~ +1768 ℃/＜500 ℃，，，±0.5 ℃/≥500 ℃，，，±0.1 %F.S.
B +400 ℃ ~ +1820 ℃/＜500 ℃，，，±0.5 ℃/≥500 ℃，，，±0.1 %F.S.
W5Re-W26Re 0 ℃ ~ +2315 ℃/＜500 ℃，，，±0.5 ℃/≥500 ℃，，，±0.1 %F.S.
W3Re-W25Re 0 ℃ ~ +2315 ℃/＜500 ℃，，，±0.5 ℃/≥500 ℃，，，±0.1 %F.S.
L -100 ℃ ~ +800 ℃/＜300 ℃，，，±0.3 ℃/≥300 ℃，，，±0.1 %F.S.
Temperature drift 30 ppm/℃
General parameters
Compensation accuracy 1°C (Temperature compensation range: -20°C ~ +60°C)
Response time ≤ 500 ms
Power dissipation 1.2 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6
State
Output states Default following mode, it can be configured as 4mA~20mA NE43 mode or fixed output mode.
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CNEX, CE, FCC, CCC
Ex marking [Ex ia Ga]ⅡC
Um 250 V
Uo 8.7 V (Terminals 1, 2)
Io 33 mA (Terminals 1, 2)
Po 72 mW (Terminals 1, 2)
Co 3.58 μF (Terminals 1, 2)
Lo 21 mH (Terminals 1, 2)
